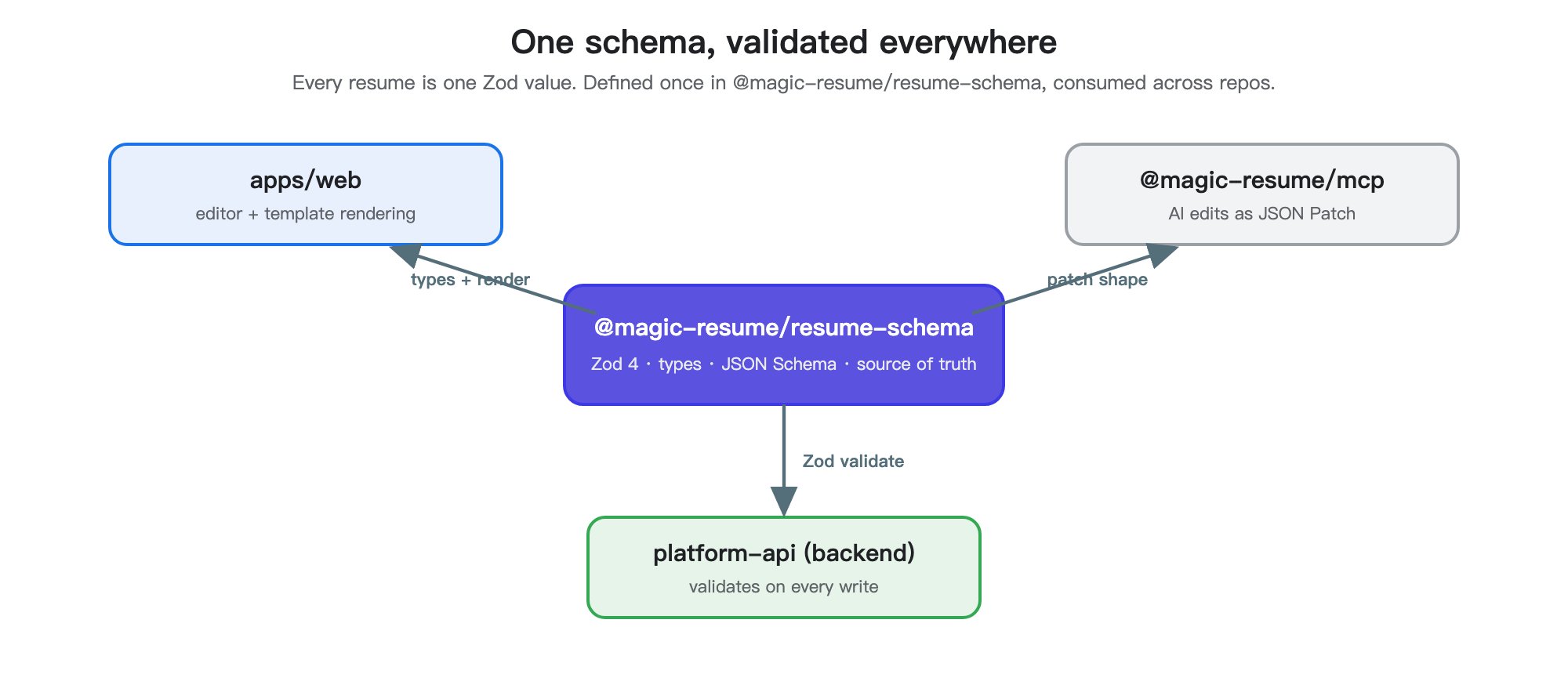

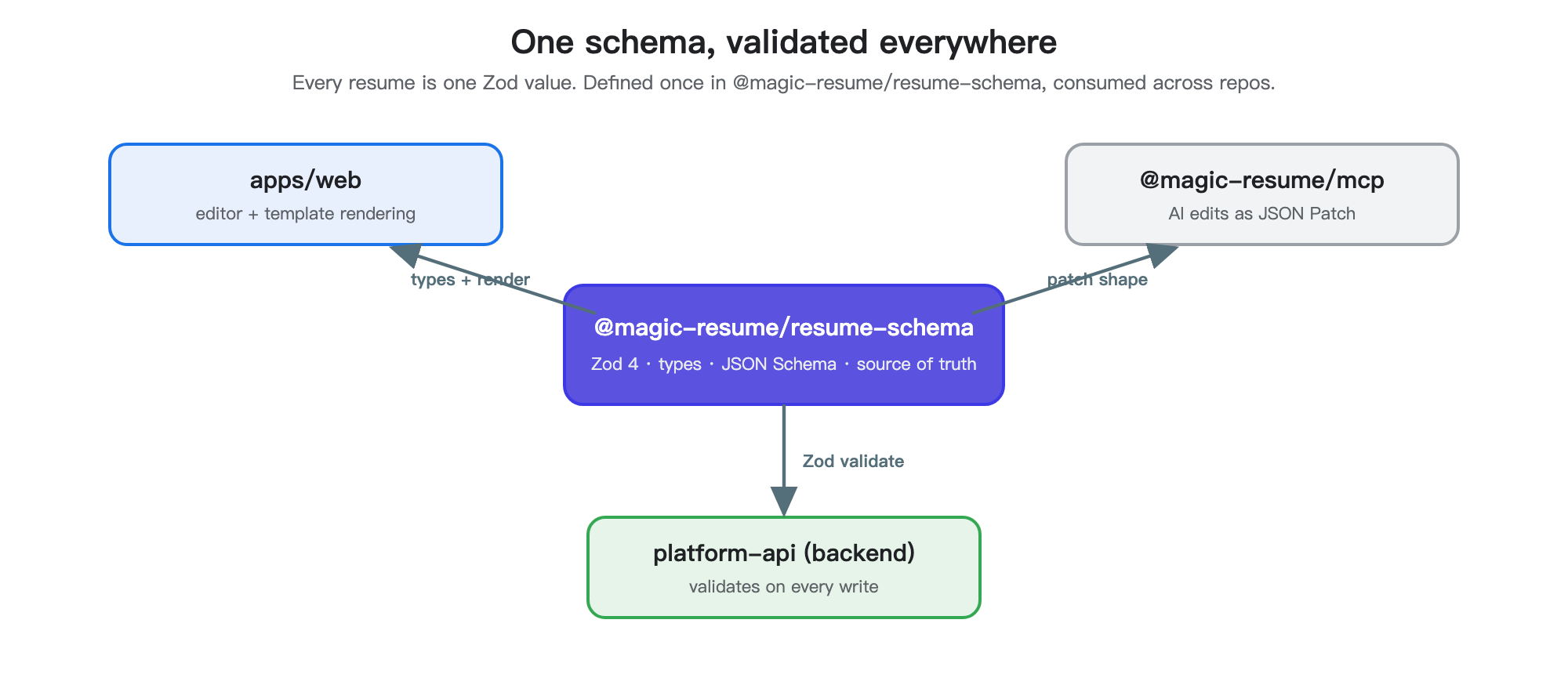

Public package sources and releases live in magic-resume-kit. Source paths and package build commands for schema, templates, design-system, icons, utils and MCP on this page refer to that repository. Applications consume @magic-resume-kit/* from npm. @magic-resume-kit/resume-schema is the single source of truth for the resume data shape. The web app, MCP server, every template, and every AI tool all conform to this schema. If a field is not in the schema, it does not exist. One schema, validated everywhere

What does the resume schema export?

All sub-schemas (basicsSchema, experienceSchema, etc.) are also exported individually so callers can validate one section in isolation.

What does the build produce?

The build step does two things:
  1. tsc produces dist/ with type declarations.
  2. scripts/write-schema.mjs emits dist/schema.json — a static JSON Schema artifact.
dist/schema.json is what the MCP server serves as a resource, so AI tools can introspect the resume shape without a runtime call.

How are patches validated and written?

Mutations are JSON Patch (RFC 6902) operations. The roundtrip:
This applies to both the web editor and MCP tools — the editor produces patches too, it’s not a separate code path.
The MCP server has preview_resume_patch for exactly this validation loop without mutating state. Use it from AI tools before applying anything destructive.

How do I add a new field?

  1. Add it to the right sub-schema in packages/resume-schema/src/.
  2. Update defaultResume and sampleResume if it’s required.
  3. Rebuild: pnpm --filter @magic-resume-kit/resume-schema build.
  4. Update consuming templates in packages/resume-templates and the editor form in apps/web/src/components/editor/.
  5. If the field affects AI editing, add guidance to get_resume_editing_guide in packages/mcp/src/resume-tools.ts.

How do I add a new template ID?

Template IDs are part of the schema (templateSchema is a Zod enum over templateIds). When you add a new one, three things must stay in lockstep:
  1. templateIds in packages/resume-schema
  2. templateRegistry in packages/resume-templates/src/registry.ts
  3. A thumbnail at apps/web/public/templates/jpg/{id}.jpg
Missing any of these causes a runtime error somewhere downstream — the editor will offer a template that doesn’t render, or the schema will reject a valid resume.
